DynaBank

"DynaBank" is an autonomous power source with a high output efficiency that simultaneously serves as an uninterrupted power supply (UPS). The system stands out for its high capacity in a small space and is designed for outdoor use. When the capacity is depleted, a generator automatically starts to recharge the batteries. Thanks to the large 224-liter tank, the system can operate for an extended period without refueling. Additionally, the batteries can be optionally charged with a mobile photovoltaic system. Naturally, a connection to the power grid is also possible. The system has openings all around for forklift forks and crane eyes on top for transport.

Brochure 3.6kVa

Brochure 15kVA

DynaBank 15 kVA 25 kWh

Key Features

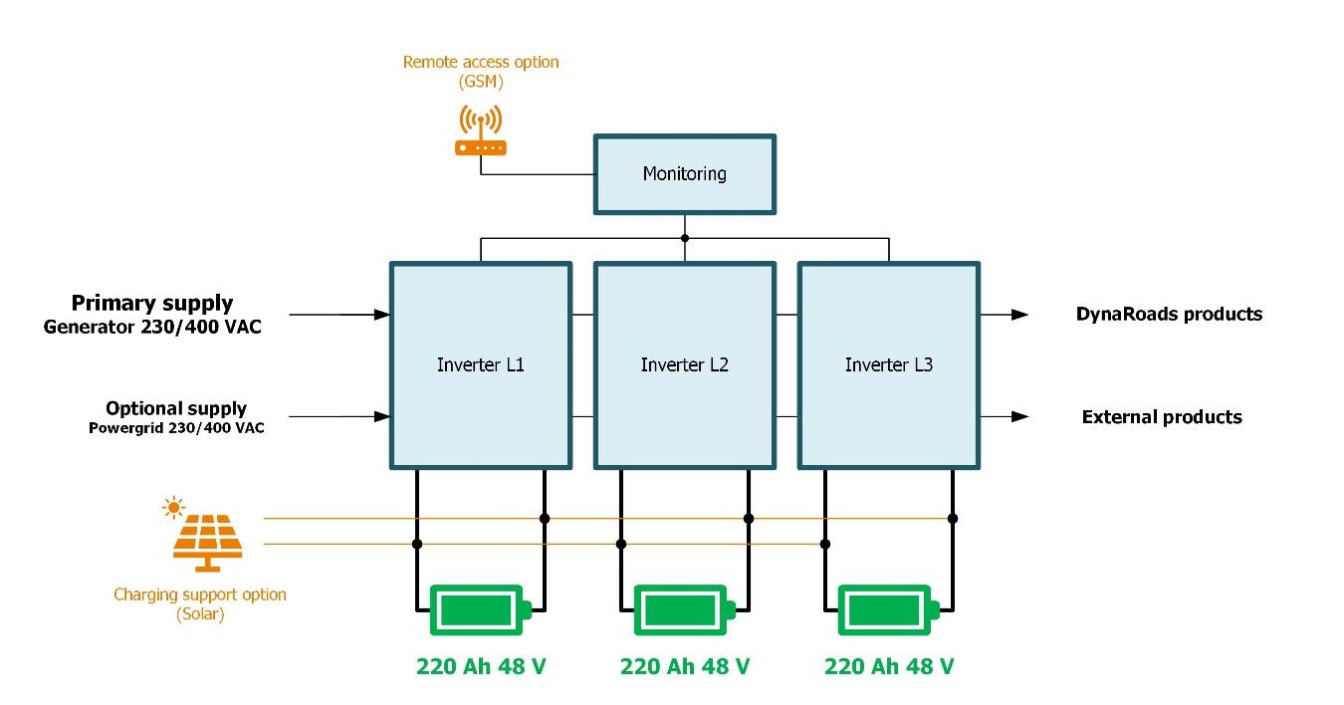

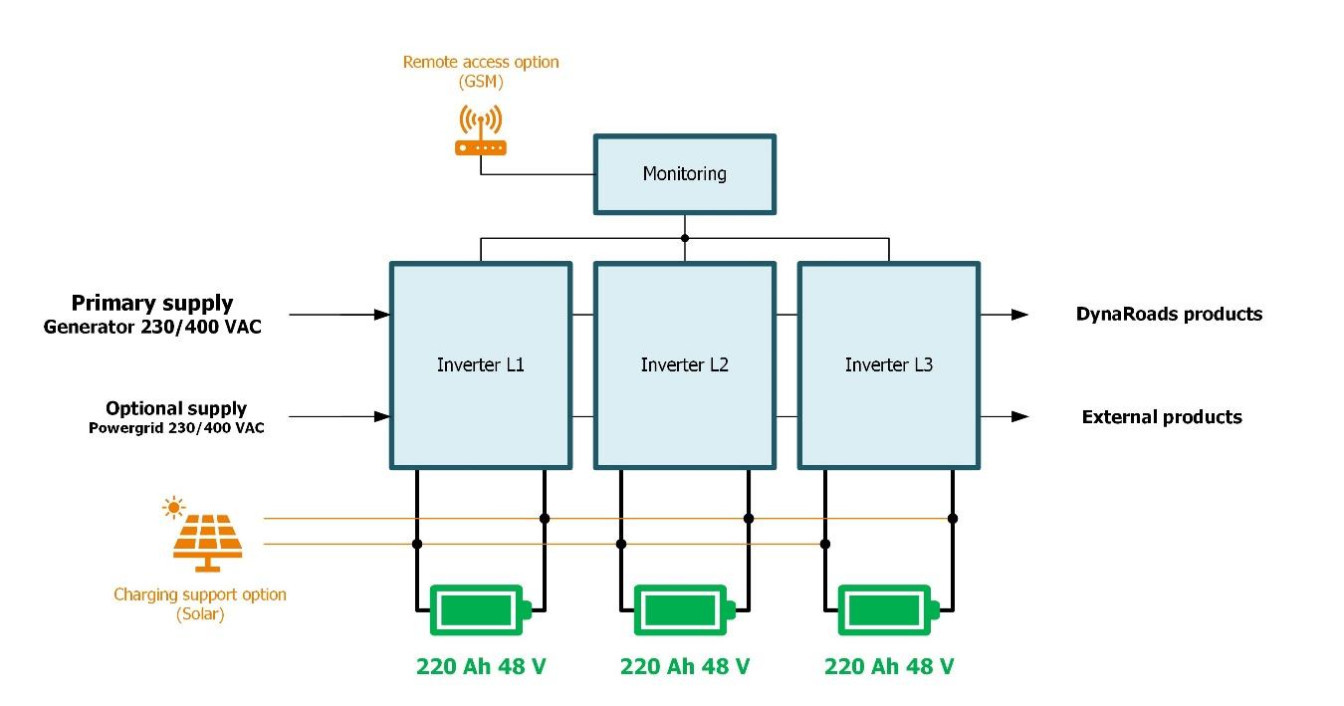

Autonomous three-phase operation
Grid synchronization
15 kVA output power 230/400 VAC 50 Hz
25 kWh effective Energy (per phase 4x 220 Ah 12 V lead-gel battery serially)
Feed-in capability from generator with fully automatic start and 224-liter tank
Coverage of a power failure for approx. 100 minutes under full load
Compact power unit

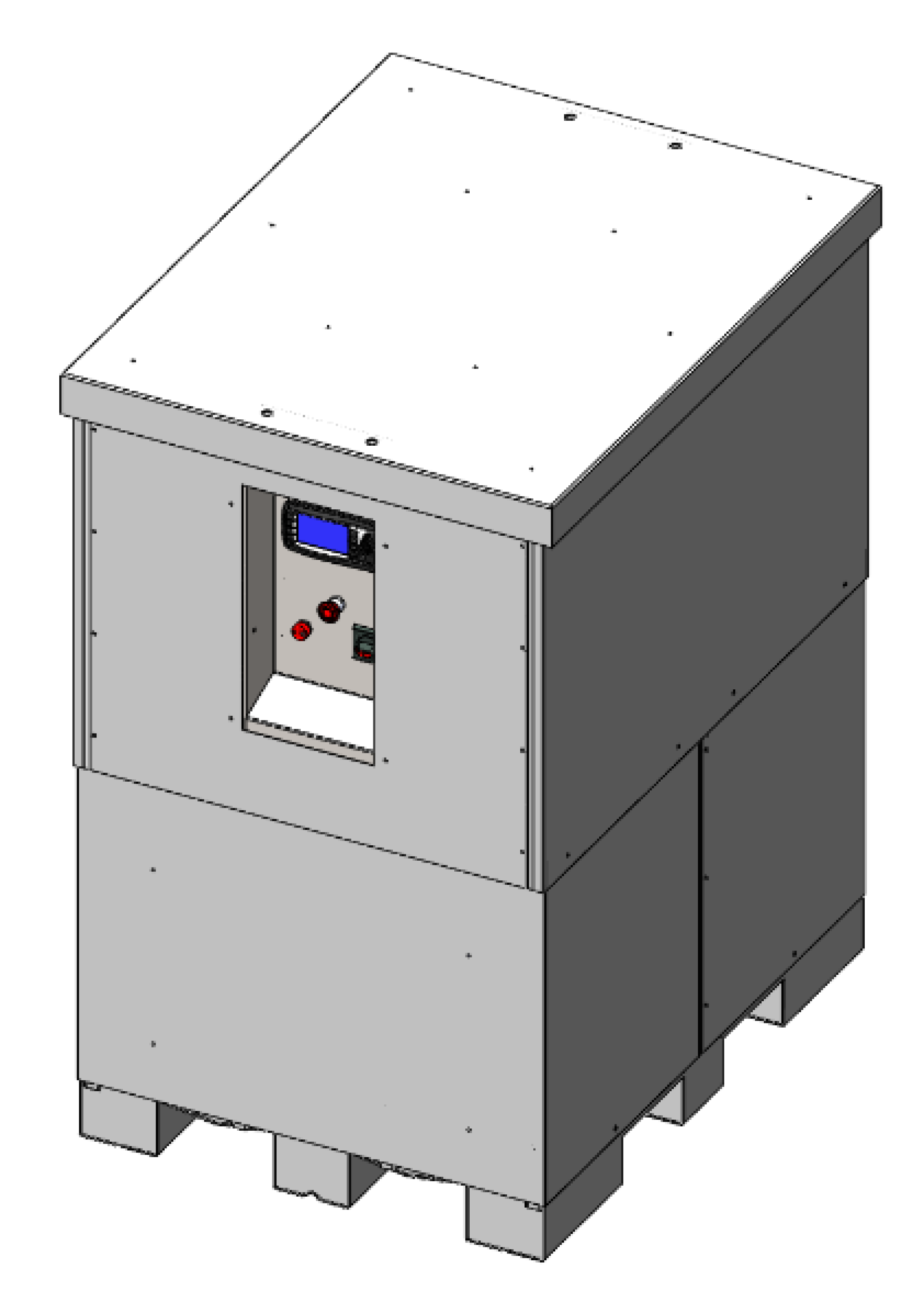

Dimensions: 1.20m x 1.00m x 1.20m
Optional: Remote access
Optional: Charging support with solar modules
